Introduction

Zanthoxylum armatum is a perennial, deciduous shrub or small tree. Its fruit is green and dotted with slightly raised oil spots. Its roots, stems, fruits, and leaves can be used as raw materials for biomedicine, with antibacterial, antitumor, anti-inflammatory, analgesic, and anti-oxidative properties (Kumar et al., 2014; Thakur et al., 2016; Nooreen et al., 2017). It is distributed extensively throughout southwest China, and large-scale Z. armatum plantations currently occur in Sichuan Province, where they represent a significant source of economic revenue for farmers (Zhuo et al., 2020). The fruit pericarp is famous for its pungent and numbing flavor and is widely used as a seasoning for food (Li et al., 2020). Both Z. armatum and Z. bungeanum are commonly called Szechuan peppers, but they differ in biological characteristics and suitable growing areas; the former grows in low-altitude plains and is drought resistant and cold intolerant, while the latter grows in high-altitude areas and has both high cold and drought resistance (Xiang et al., 2016; Zhuo et al., 2020). In recent years, Z. armatum crops have often suffered from serious frost damage and low yields due to low temperatures. Improving the cold resistance of Z. armatum is therefore imperative for maintaining high yields.

Temperature stress reduces average yields by more than 50% and threatens forest productivity (Saini et al., 2018). Meanwhile, freezing is the main environmental pressure that limits the geographical distribution, growth and productivity of fruit trees (Yu and Lee, 2020). Low-temperature stress causes oxidative damage to plants via the generation and accumulation of reactive oxygen species (ROS) and free radicals, resulting in decreased growth and development (Devireddy et al., 2021). However, plants have evolved a variety of mechanisms to protect themselves against oxidative stress (Saini et al., 2018), including the enzymatic antioxidant system, which comprises superoxide dismutase (SOD), catalase (CAT), peroxidase (POD), and ascorbate peroxidase (APX) (Fan et al., 2014; Guo et al., 2020; Ritonga and Chen, 2020). Numerous studies suggest that the antioxidant systems play important roles in protecting plants against oxidative damage induced by low-temperature stress (Cansev et al., 2011; Yang et al., 2011). Therefore, enhancing the activity of antioxidant enzymes in plants organs is necessary for improving plant tolerance to low-temperature stress (Kwon et al., 2022). Furthermore, the cold resistance of forest trees is reportedly related to their nutrient content (Jalkanen et al., 1998; Held et al., 2010). Fertilization can improve nutrient storage, and specific fertilization combinations can be more effective at increasing cold tolerance than single compound fertilizers. Furthermore, the metabolism and physiological processes in plants are directly related to water availability (Yu et al., 2020). Proper irrigation, fertilization, and fertigation are considered the basic measures for increasing plant health and improving cold resistance and water-fertilizer use efficiency (Saravia et al., 2016; Sun et al., 2020).

Previous studies showed that reasonable combined water-fertilization significantly improved yield, quality, and winter cold resistance of cashew and honey citrus trees (Oliet et al., 2011; Andivia et al., 2012; Ahmad et al., 2021). Rikala and Repo (1997) found that a high level of fertilizer, applied as NPK (nitrogen-phosphorus-potassium) 11-4-25 from the beginning of July to the beginning of September, could produce the highest level of frost tolerance in Pinus sylvestris. Nitrogen application improved Eucalyptus globulus cold resistance during the growing season. Dehayes et al. (1989) reported that a moderate level of N fertilization improved Picea rubens cold tolerance, while higher levels decreased it, and that P had no effect, suggesting that a moderate water and fertilizer management program could improve the cold resistance of forest plants. Siddiqui et al. (2020) indicated that a moderate level of NPK has a positive impact on C. caudatus and O. stamineus phenolics, flavonoid compounds, and antioxidant activities.

However, only a few studies on the role of soil moisture in mediating cold tolerance in forest plantations, particularly in cold desert climate zones, have been published to date. Furthermore, no reported literature exists on the cold resistance of Z. armatum, and this hinders our capability for meeting the needs of current production practices. In this study, the leaves of Z. armatum potted seedlings were studied under an artificial simulation of low-temperature stress after receiving a specific water-fertilizer treatment by measuring the SOD, POD, and CAT enzymes activities and MDA content. The main objectives of this study were to verify the following hypotheses: (1) low-temperature stress can lead to physiological changes, such as lipid peroxidation, membrane damage, and an altered antioxidant system of Z. armatum. (2) Appropriate water and fertilizer rates can mitigate the damage of low-temperature stress and improve the cold tolerance of Z. armatum. Our study represents a theoretical reference for the selection of optimum water and fertilizer management practices for enhancing low-temperature resistance in Z. armatum.

Materials and Methods

Experimental Site

The pot experiment was carried out in the greenhouse of Sichuan Agricultural University Chengdu, Sichuan Province, China, at an altitude of 580 m. The climate here is humid subtropical, with an average annual temperature of 17.2°C, an average maximum temperature in July of 32°C, and an average minimum temperature in January of 3.7°C.

Experimental Design

Soil for the experiment was derived from the ploughing layer (0–20 cm) of an agricultural field. After air-drying, all residues were removed and the soil was passed through a 5-mm sieve and thoroughly mixed. The soil texture was sandy loam with the following chemical properties: pH, 7.51; organic matter, 16.6 g·kg^-1; total N, 1.0 g·kg^-1; alkali-hydrolyzed N, 80.3 mg·kg^-1; total K, 23.9 g·kg^-1; total P, 0.5 mg·kg^-1; available-P, 22.7 mg·kg^-1; available K, 90.8 mg·kg^-1; and field capacity moisture content, 25.2%. Each pot (depth of 23 cm, upper diameter of 22 cm, and lower diameter of 20 cm) contained 6.3 kg of air-dried soil, of which 2/3 were first loaded into the lower part of the pot, while the remaining 1/3 was fully mixed with the corresponding fertilizer and added to the upper part of the pot. The pot soil thickness was about 20 cm.

Field Water Capacity and Fertilization

An orthogonal design was used for the water and fertilizer treatments with the following four factors: field water capacity (FWC), urea (NH₂CONH₂), phosphorus pentoxide (P₂O₅), and potassium oxide (K₂O). The soil moisture and fertilizer levels of each treatment are given in Table 1. Each treatment contained nine replicates, with one pot per replicate (one individual per pot). The applied fertilizer amount was calculated according to the pot area; the entire amount of fertilizer was applied once.

Low-temperature Treatment

In mid-April 2016, the Z. armatum seedlings, which were about 10 cm high, were transplanted into pots. The pots were placed in a transparent plastic shelter (used to protect the seedlings from rain) and weighed daily to adjust the soil moisture to the correct level. The low-temperature treatments were conducted in mid-November of 2017. In each treatment, whole compound leaves at the same position in the upper part of each plant were selected and incubated in an artificial intelligence low-temperature incubator for the low-temperature treatments. The treatment temperatures were –9°C, –6°C, –3°C, 0°C, 5°C, 10°C, and 25°C. The leaves began in an incubator at 25°C and were then cooled down at a rate of 4°C·h^-1, kept at the target temperature for 5 h, then the temperature was increased at the same rate. Upon reaching the temperature of 25°C, leaves were left to recover for 5 h and then the rest of protocol was continued.

MDA Content and Antioxidant Enzyme Activity Determination

The SOD, POD, and CAT activities, as well as the MDA content of the leaves, were measured with the nitroblue tetrazolium reduction (Giannopolitis and Ries, 1977), guaiacol colorimetric (Fu et al., 2014), ultraviolet absorption (Weydert and Cullen, 2010), and thiobarbituric acid (Velikova et al., 2000) methods, respectively.

Statistical Analysis

All experiments in this study were repeated in triplicate. Statistical analysis (mean ± standard deviation) was performed and figures was created with Microsoft Excel 2007 and OriginPro 8.0, respectively. All data were analyzed by one-way analysis of variance (ANOVA) and the mean differences were compared using the least significant difference (LSD) test. ANOVA, correlation coefficients, and principal component analysis (PCA) were performed using SPSS 22.0 software. Surface diagram of each interaction between two factors was drawn after fitting the equation with MATLAB interpolation and regression.

The comprehensive membership function method was used to convert the physiological indices of each treatment, including SOD, POD, and CAT activities and MDA content. When the index was positively correlated with cold resistance, the data conversion formula was X(u)=X-XminXmax-Xmin. Otherwise, the data conversion formula was X(u)=Xmax-XXmax-Xmin. Here, X(u) is the membership function value, X is the mean of the index, Xmin is the minimum of the index, and Xmax is the maximum of the index. Subsequently, the membership function values of each resistance index were added and the average value calculated. Higher values indicate a stronger stress resistance.

Results

MDA Content and Antioxidant Enzyme Activity

The MDA content in the leaves of Z. armatum seedlings in different water and fertilizer treatments showed a similar pattern with temperature, increasing slightly from 25°C to –9°C (Fig. 1). The leaf MDA content in each fertilizer treatment was significantly lower than that T1 treatment in all temperatures (p < 0.01, Fig. 1).

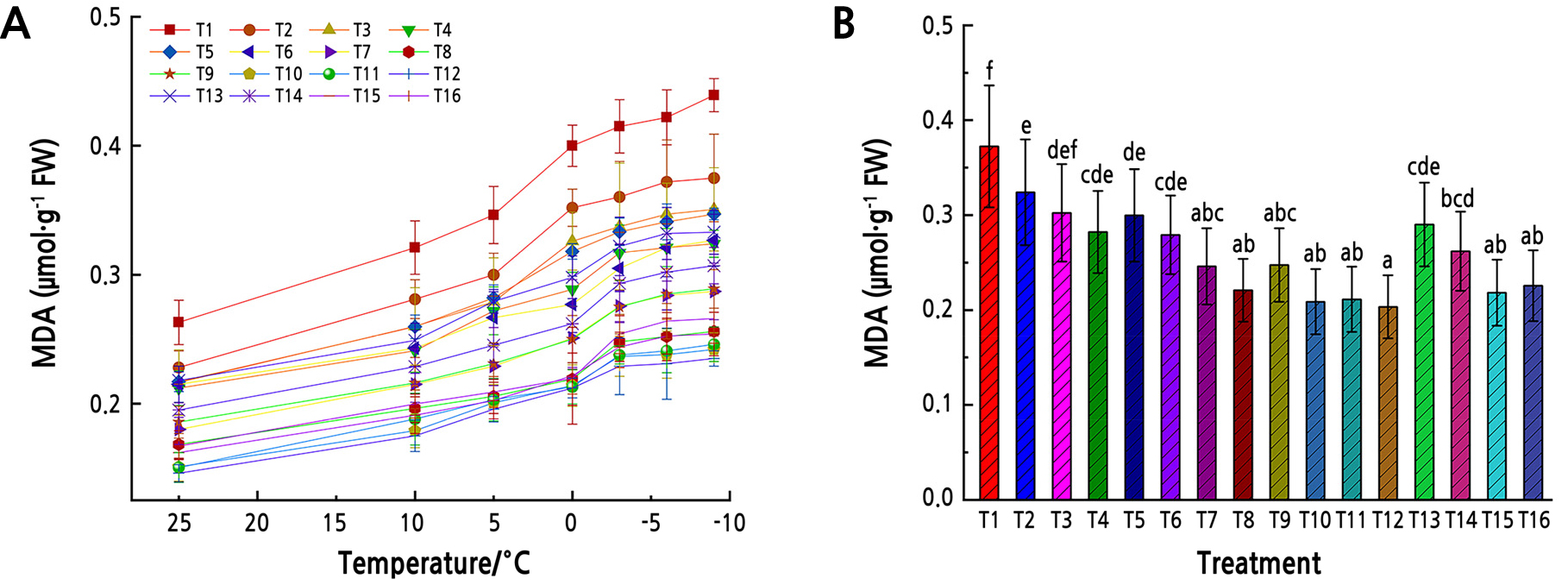

Fig. 1.

MDA content under low-temperature stress. (A) MDA content in Z. armatum leaves under different temperatures. Different shapes represent different fertilizer and water treatments (T1–T16). (B) Mean MDA content in Z. armatum leaves under low-temperature stress from all temperatures. Different lowercase letters indicate significant differences (p < 0.05, LSD-test). Error bars represent standard errors of the mean.

With decreasing temperature, the activities of POD in leaves initially increased and then tended to decrease. The leaf POD activity in each treatment was significantly higher than that in the T1 treatment (p < 0.01, Fig. 2). Moreover, from all temperatures the POD activity in the leaves of Z. armatum seedlings of each fertilizer treatments was 36.5–129.1% higher than that in the T1 treatment.

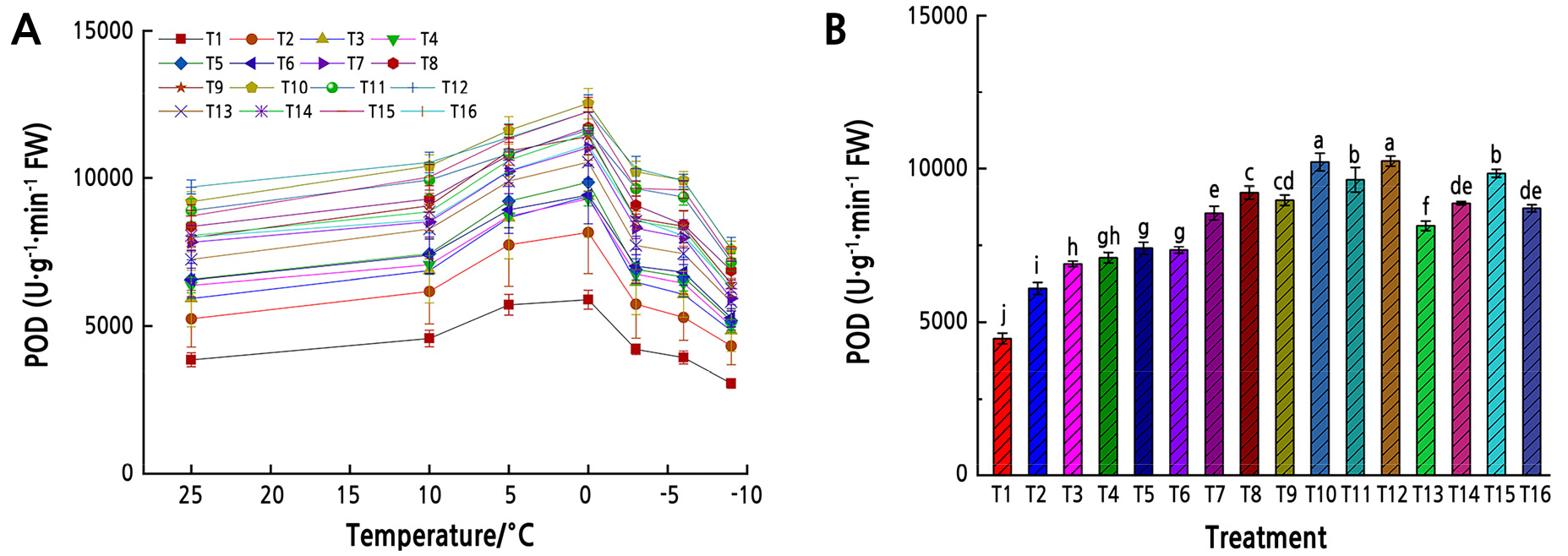

Fig. 2.

POD activity under low-temperature stress. (A) POD activity in Z. armatum leaves under different temperatures. Different shapes represent different fertilizer and water treatments (T1–T16). (B) Mean POD activity in Z. armatum leaves under the low-temperature stress from all temperatures. Different lowercase letters indicate significant differences (p < 0.05, LSD-test). Error bars represent standard error of the mean.

With decreasing temperature, the leaf CAT activity initially increased and then tended to decrease (Fig. 3). The highest average CAT activity was recorded in T12 (60.0 Ug^-1·min^-1), while the lowest was in T1 (39.6 Ug^-1·min^-1). The average CAT in T12 was 34% higher than that in T1, while the average CAT activity in T12 was not significantly different from that in T10 or T11 from all temperatures (p > 0.05).

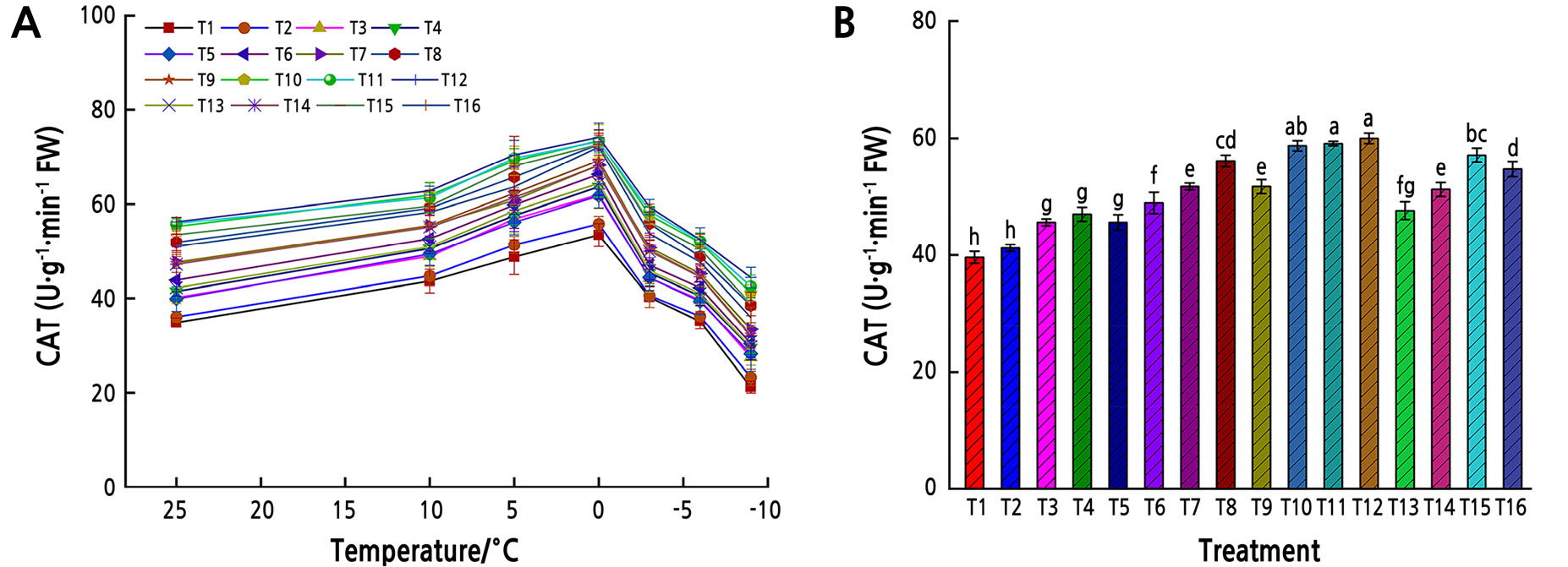

Fig. 3.

CAT activity under low-temperature stress. (A) CAT activity in Z. armatum leaves under different temperatures. Different shapes represent different fertilizer and water treatments (T1–T16). (B) The mean CAT activity in Z. armatum leaves under low-temperature stress from all temperatures. Different lowercase letters indicate significant differences (p < 0.05, LSD-test). Error bars represent standard errors of the mean.

The leaf SOD activity initially increased and then decreased with decreasing temperature under different water and fertilizer treatments (Fig. 4). The SOD activity from 25°C to 0°C showed a linear increase in T10, T11, T12 and T15, while it increased slowly in the other treatments. The SOD activity increased rapidly from 10°C to 0°C and reached its maximum value at 0°C. The maximum value was observed in T12, and the SOD activity decreased rapidly from 0°C to –10°C; under low temperatures SOD activity was lower than that at normal temperatures. From all temperatures the average SOD activity in T1 was lower than those in the other treatments. (p < 0.01, Fig. 4).

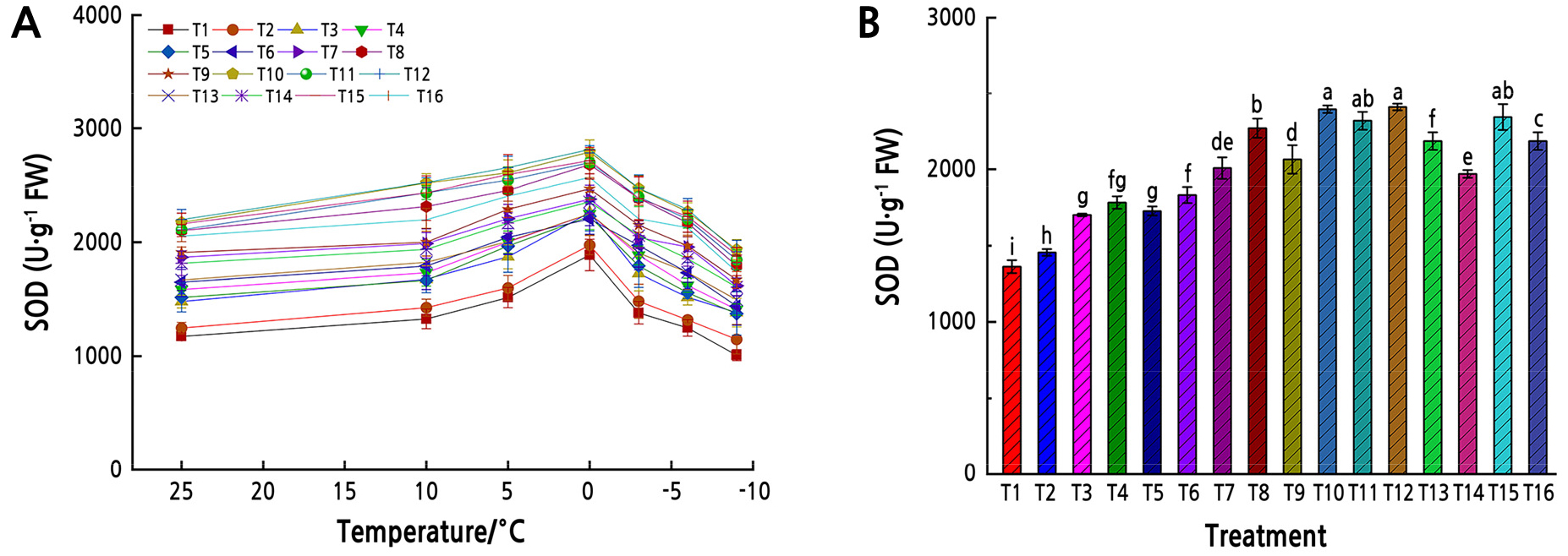

Fig. 4.

SOD activity under low-temperature stress. (A) SOD activity in Z. armatum leaves under different temperatures. Different shapes represent different fertilizer and water treatments (T1–T16). (B) Mean SOD activity in Z. armatum leaves under low-temperature stress from all temperatures. Different lowercase letters indicate significant differences (p < 0.05, LSD-test). Error bars represent standard errors of the mean.

Comprehensive Evaluation and Correlation Analysis

The CEI of Z. armatum seedlings followed the order T12 > T10 > T11 > T15 > T8 > T16 > T9 > T7 > T14 > T6 > T13> T4 > T5 > T3 > T2 > T1, and the highest cold resistance value was recorded for T12. The comprehensive value of cold resistance was positively correlated with CAT (r = 0.992, p < 0.01), POD (r = 0.983, p < 0.01), and SOD (r = 0.994, p < 0.01) activities, and negatively correlated with MDA content (r = –0.989, p < 0.01). This shows that POD, CAT, and SOD activities play a major role, while MDA plays a supporting role, in the antioxidative processes of Z. armatum.

Principal component analysis (PCA) was performed to further explore the relationship between water and fertilizer treatments. Treatments with fertilization were separate from those without fertilizer treatment in the PCA plot (Fig. 5). Treatments were divided into five categories: T3, T4, T5, and T6 were clustered into the first category; T7, T9, T13, and T14 were clustered into the second category; T8, T10, T11, T12, T15, and T16 were clustered into the third category; and T1 and T2 were clustered into the fourth category. Furthermore, besides the obvious T1 outlier in the control group, the degree of separation between the treatment groups was clear (Fig. 6).

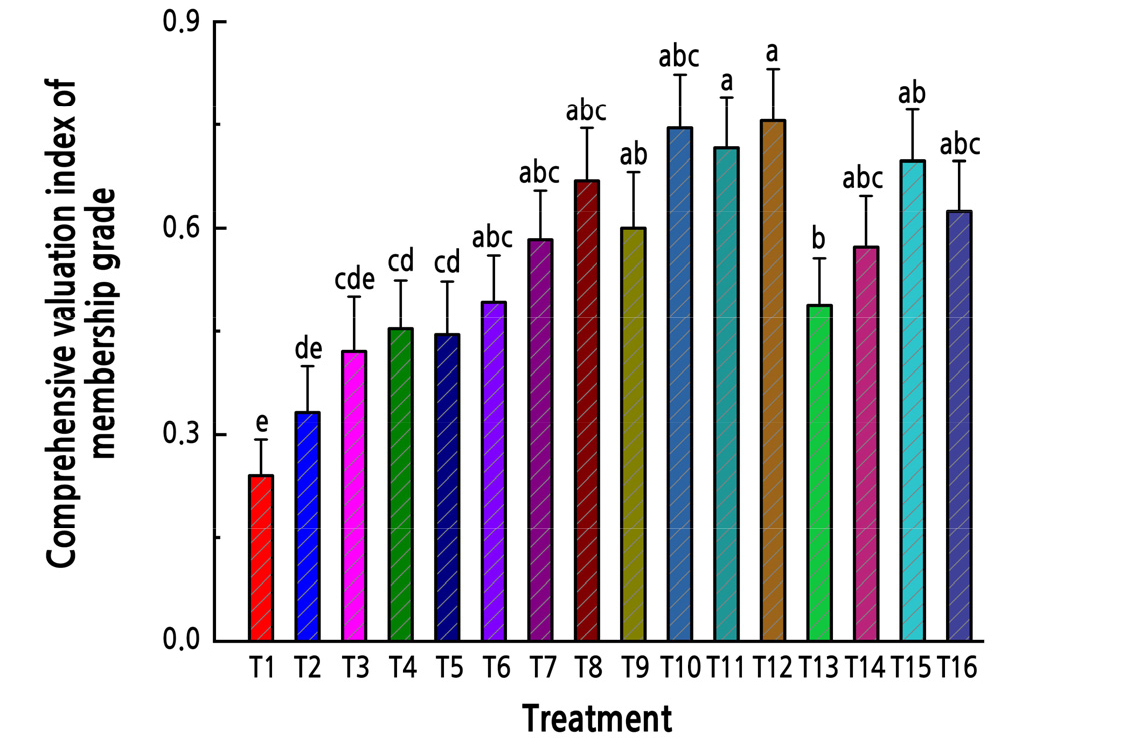

Fig. 5.

Comprehensive value of cold resistance of different fertilizer and water treatments. Different lowercase letters indicate significant differences (p < 0.05, LSD-test). Error bars represent standard errors of the mean.

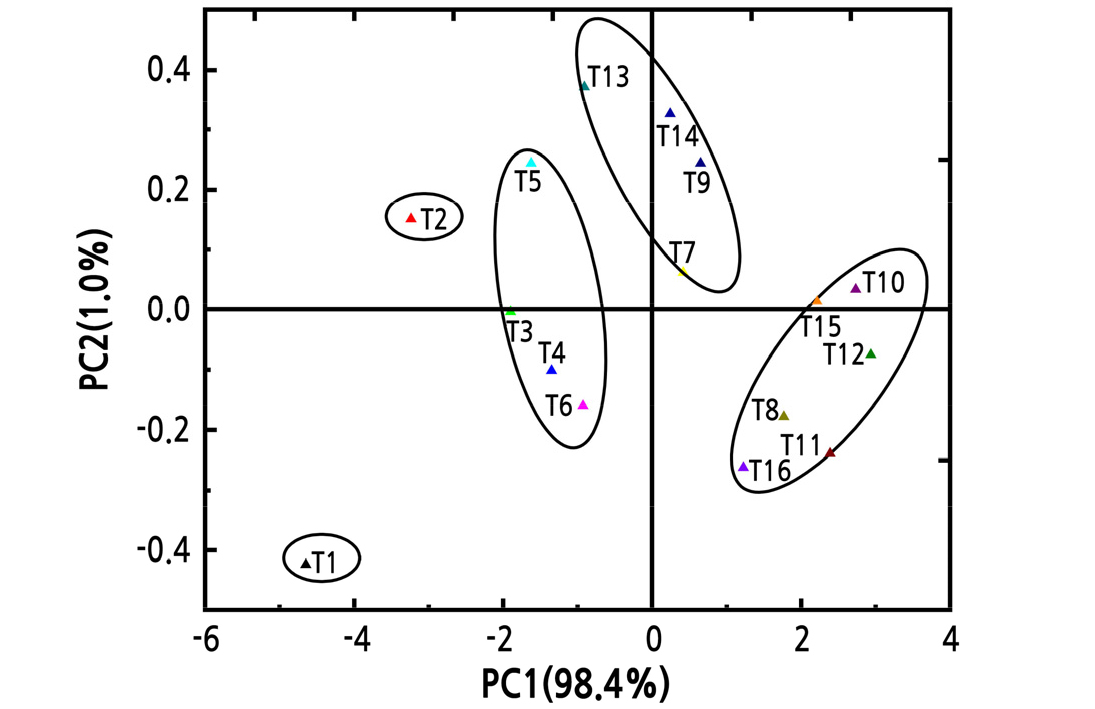

Fig. 6.

Principal component analysis (PCA) of the physiological characteristics of Z. armatum under different fertilization and water treatments. Each point represents a treatment and each ellipse represents a category. The proportion of the variance explained by each PC is shown in parentheses along each axis.

Optimal Water and Fertilizer Management

The optimum soil moisture and fertilizer levels were derived from the regression equation (Table 2). The FWC and the N, P and K application rates that were found to improve cold resistance were 59.6–63.4% (average of 61.5%), 114.2–248.8 kg N/ha (average of 181.5 kg N/ha), 40.1–108.5 kg P₂O₅/ha (average of 74.3 kg P₂O₅/ha), and 200.2–254.4 kg K₂O/ha (average of 227.3 kg K₂O/ha), respectively. The results showed that the interactions of FWC–N, FWC–P, FWC–K, N–P, N–K, and P–K could promote the cold resistance of Z. armatum to a certain extent, and that the appropriate fertilizer application rate could also increase the cold resistance of Z. armatum, while excessive amounts could decrease it (Fig. 7).

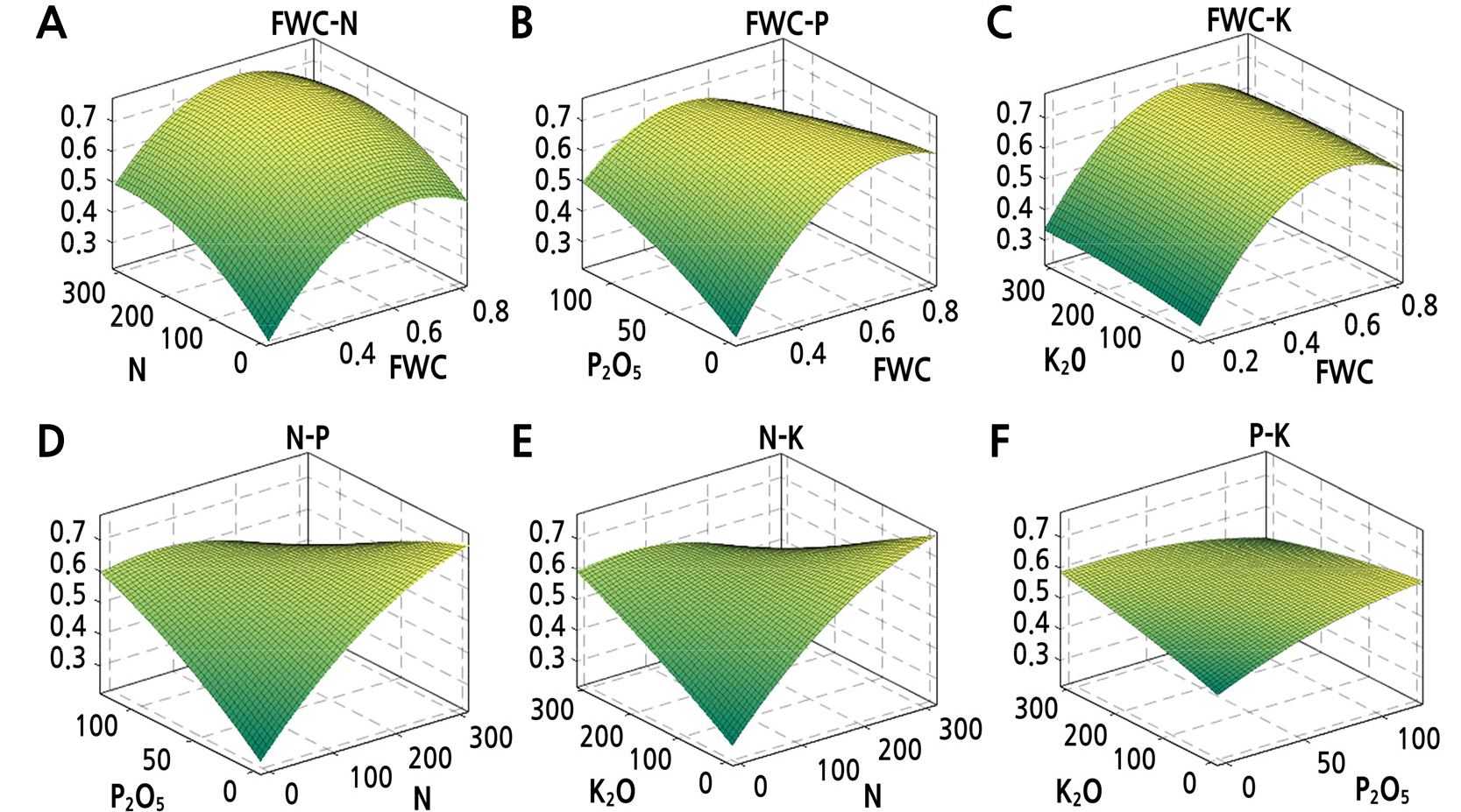

Fig. 7.

Interaction effects of field water capacity (FWC), N, P, and K fertilizers on cold resistance comprehensive values. Response surfaces show the effects of FWC and N, FWC and P, FWC and K, N and P, N and K, and P and K on CEI for Z. armatum in (A)–(F), respectively. The z-axis represents the comprehensive evaluation index (CEI).

Discussion

Low temperature is among the main abiotic stress factors that impact plant growth and development (Ritonga and Chen, 2020). Low temperature dysregulates active oxygen metabolism in plants, which leads to numerous cellular and physical changes, including oxidative stress and cell membrane lipid peroxidation; the damage caused by such stress may ultimately lead to cell death (Yu et al., 2020). The enzymes SOD, POD, and CAT are three important protective enzymes in a plant’s enzymatic defense system. SOD can catalyze the disproportionation of O^-2 in ROS into H₂O₂ and O₂, while CAT specifically removes H₂O₂. POD can catalyze the reaction of H₂O₂ with other substrates to consume H₂O₂. SOD, POD, and CAT coordinate with each other to effectively reduce or eliminate ROS, thus maintaining and promoting a stable and complete cell membrane structure (Sairam et al., 2011; Caverzan et al., 2012). The findings here showed that SOD, POD, and CAT activities, as well as MDA content, increased in Z. armatum leaves as temperature decreased. The activities of SOD, POD, and CAT started to decrease, while MAD content started to increase rapidly, when the temperature dropped to 0°C. These findings were similar to those of other studies (Wang et al., 2010; Liu et al., 2019; Ritonga and Chen, 2020), which showed that low-temperature stress upregulates antioxidant enzyme activity, enabling plants to tolerate cold stress (Guo et al., 2020; Ritonga and Chen, 2020). However, membrane damage will eventually occur if the degree of plant membrane lipid peroxidation increases to such an extent so as to be beyond the plants' self-regulating abilities (Zhang et al., 2015). This is supported by the fact that the generation and elimination of ROS and antioxidant enzyme activity were correlated with each other in Z. armatum seedlings under the low-temperature stress.

Fertilization, especially N, P, and K application, plays a vital role in plant growth and production, since these nutrients are involved in many biological processes and enhance biotic and abiotic stress tolerance (Deng et al., 2014). Current research shows that the application of N, P, and K increases the activities of SOD, POD, and CAT enzymes and decreases the content of MDA as temperature decreases, which indicates that fertilization could improve the cold resistance of Z. armatum. Previous studies have reported the benefits of improved mineral nutrition on enhancing cold tolerance in plants (Broschat, 2010). Fernández et al. (2007) observed that plants fertilized with more than 1.25% N application tolerated freezing better. Similarly, Bigras et al. (1996) observed that black spruce seedlings had a higher cold hardiness at higher NPK fertilization levels. Moreover, Heredia et al. (2014) observed that fertilized seedlings had greater frost tolerance than conventionally fertilized plants. These views are supported further by the present findings that Z. armatum seedlings treated with a high concentration of NPK were more resistant to cold under the same field water capacity conditions. Our results also agreed with those obtained by other researchers (Ihtisham et al., 2018). However, some researchers (Birchler et al., 2001) found that high N and K levels reduced frost hardiness, while P did not influence cold tolerance. The lack of consensus on this issue may be due to differences in tree species, nutrient requirements and balance, the amount of fertilizer required for plants as they age, or the different evaluation indicators (Oliet et al., 2011). It is also noteworthy that when the FWC is low, increased fertilization does not produce higher cold resistance; similarly, the results of the current study indirectly showed that soil moisture content also affects cold resistance in Z. armatum. This could be because highly fertilized plants are more vulnerable to water stress (Harvey and Van, 1999), and lower FWC exacerbates this phenomenon. Additionally, some research has shown that a FWC of 35–40% is more conducive to improving the overwintering ability of plants (Wang et al., 2017). In this sense, the appropriate FWC along with optimal fertilizer application is the key to improving the cold resistance of Z. armatum. Therefore, when Z. armatum suffers from temperature stress during planting, the appropriate FWC along with optimal fertilizer application can enhance the tolerance of Z. armatum to cold stress, alleviating the damage caused by low-temperature environments and helping Z. armatum successfully survive adversity. This view has been proven in many plants (Nie et al., 2015; Ihtisham et al., 2018; Toca et al., 2018). In addition, fertilization can also improve the accumulation of fresh and dry matter and promote plant growth and flower bud differentiation (Stanford et al., 2005; Zhou et al., 2020), which plays an important role in improving the yield of Z. armatum and increasing economic benefits.

The appropriate amount of fertilizer can be applied to the plant to improve cold resistance, and either under- or over-fertilization can have adverse effects (Hawkins et al., 1995; Held et al., 2010). Previous studies have reported that Holm oak seedlings have the same increase in cold resistance after the use of 100 mg N and 130 mg N in each pot (Andivia et al., 2012). Moreover, when the amount of fertilizer N, P and K were 30, 24, and 9 or 30, 27, and 6 g in each pot, respectively, the winter performance of perennial ryegrass was enhanced compared with no fertilizer treatment (Ihtisham et al., 2018). The present study also showed that the optimal measures for inducing high cold resistance were 59.6–63.4% (average of 61.5%) FWC, 114.2–248.8 kg N/ha (average of 181.5 kg N/ha), 40.1–108.5 kg P₂O₅/ha, (average value of 74.3 kg), and 200.2–254.4 kg K₂O/ha (average of 227.3 kg K₂O/ha).

Conclusion

In this study, the activities of four antioxidant enzymes related to cold resistance were investigated under 16 fertilizer and soil moisture conditions to explore the responsiveness mechanism associated with cold resistance in Z. armatum. Our results showed that low temperatures could significantly affect antioxidant enzyme activities in the leaves of Z. armatum seedlings. The SOD, POD, and CAT enzyme activities in Z. armatum leaves showed a trend of first increasing and then decreasing as the temperature declined. Furthermore, CEI was positively correlated with SOD, POD and CAT activities, but it was negatively correlated with MDA content. Fertilization significantly improved the cold resistance of Z. armatum. Moreover, a balanced nutrient application utilizing N, P, and K, and an appropriate FWC, are key to enhancing cold resistance. Appropriate application levels of field water capacity (59.6–63.4%), nitrogen (114.2–248.8 kg N/ha), phosphorus (40.1–108.6 kg P₂O₅/ha), and potassium (200.2–254.4 kg K₂O/ha) fertilizers could enhance cold resistance in Z. armatum. Our study will benefit users that want to create effective water and fertilizer management programs in Z. armatum.
