Introduction

Flowering in orchid plants is regulated by both internal factors and environmental signals such as daylength and temperature (Cerdan and Chory, 2003). Different species of orchids exhibit sensitivity to daylength in various ways, and yet small changes in daylength are critical for the growth and flowering of plants in the genera Cattleya, Dendrobium, and Phalaenopsis (Bhattacharjee, 1979). Cattleya ladiata and Zygopetalum Redvale ‘Fire Kiss’ flowered under short-day (SD) (Lopez and Runkle, 2005), while artificial lighting during the middle of the night (night interruption, NI) promoted the growth and/or flowering of Cymbidium ‘Red Fire’ and ‘Yokihi’ (An et al., 2012; Kim et al., 2011) as well as some herbaceous long-day (LD) plants (Blanchard and Runkle, 2010; Oh et al., 2008; Yamada et al., 2008).

Cymbidium, a terrestrial orchid species, is commonly grown as a commercial potted or cut plant because of long postharvest life. Low temperatures are required for flower bud initiation regardless of daylength in Cymbidium (Rotor, 1952). The temperature tolerance of Cymbidium, which is a native of the Himalayas to tropical regions in Asia, varies depending on its origin. The growth of Cymbidium originating in China is accelerated at daytime and nighttime temperatures of 30°C and 25°C, respectively. However, a positive diurnal fluctuation of 10-14°C is required for flower initiation in a large-flowered Cymbidium species from the Himalayas and China (Lopez and Runkle, 2005). Daytime and nighttime temperatures appeared to have an effect on flower induction in some Cymbidium species (Pridgeon, 1992; Rotor, 1952; Went, 1957).

In summer, several Cymbidium hybrids are commonly transported from lowland production areas to higher elevations. This strategy helps to avoid high-temperature stress during vegetative growth and exposes plants to lower temperatures and higher light intensities for flower initiation (Ichihashi, 1997). However, plant quality is often reduced during transpor-tation and this can be costly for growers. Although flowering of many Cymbidium spp. can be manipulated using lower temperatures during the summer period, crop in a greenhouse is negatively affected by high temperature, which decreases yield and product quality. A number of cooling techniques, such as natural ventilation, white-shading, shade screens, and evaporative cooling (e.g. wet pad-fan, misting, and fogging systems) are used, instead of transporting the plants to higher altitudes, to maintain the temperature and humidity of a greenhouse at acceptable levels during hot periods (Perdigones et al., 2008).

In our previous study, NI in winter during 2 years promoted vegetative growth and consequently hastened flowering within 2 years compared to the 3-4 years of general cultivation with natural light conditions in Cymbidium ‘Red Fire’ and ‘Yokihi’ (An et al., 2012; Kim et al., 2011). However, no experiments were performed regarding summer environment controlling methods of Cymbidium flower induction and development in commercial greenhouses. In this study, we compared the effects of two cooling techniques, mist and shade in a greenhouse during summer period, on the growth and flowering of Cymbidium ‘Red Fire’ and ‘Yokihi’ under NI conditions.

Materials and Methods

Plants and Growth Conditions

The ‘Red Fire’ and ‘Yokihi’ varieties of Cymbidium hybrids (Mukoyama Orchids Co., Ltd., Koshushi, Japan) were trans-planted into 10 cm pots containing 100% chopped coconut husk and then re-transplanted into 16 cm pots after 4 months of growth. The plants were grown in a commercial greenhouse (Sang-Il Orchid Farm, Hwaseong, Korea). The plants were irrigated daily with tap water. A total of 5 g of controlled-release fertilizer 13N-5.7P-10.8K (Mukoyama Orchids Co., Ltd.) was placed on the top of the growing medium. The fertilizer was applied at different times during production: at transplanting and upon emergence of the first and the second flowering pseudobulbs. Supplemental fertilizers were applied bimonthly to the plants using a sprinkler. The supplemental fertilizer was composed of Ca(NO₃)₂･4H₂O, Fe-EDTA, MgSO₄･7H₂O, MnSO₄, ZnSO₄･7H₂O, H₃BO₃, CuSO₄･ 5H₂O, and Na₂MoO₄･2H₂O and provided 472, 3.44, 316, 1.63, 1.15, 1.24, 0.1, and 0.09 g･m^-3 of each nutrient (electrical conductivity 1.0 dS･cm^-1), respectively.

Experimental Design

The NI (16 weeks per each year) and cooling treatments (9 weeks per each year) were conducted twice during the 2 years of experimental period. In the first year (2009), twenty plants were grown in a NI treatment group. Ten plants from each NI treatment group were moved to the mist condition, while the other ten plants were placed under the shade condition. In the second year (2010), all of the plants treated with both the NI and summer cooling were re-exposed to the same NI and summer cooling as in the first year (2009).

NI Treatment

All Cymbidium plants received supplemental lighting from high-pressure sodium lamps (SKL-01, GEO, Hwasung, Korea) from 22:00 to 02:00h. The greenhouse was divided into three experimental sections within each cooling system. The potted plants were placed at different distances from the lamps to differentiate effects of light intensities. All treatments received a natural photoperiods that was truncated to 9 h through the use of retractable opaque black cloth that covered the greenhouse structure from 17:00 to 08:00 h. The three photoperiod treatments were 9 h short-day (control) or a 9 h with NI lighting at a low intensity (3-7 μmol･m^-2･s^-1; LNI) or a high intensity (120 μmol･m^-2･s^-1; HNI). Light intensity for NI was measured using a Li-Cor 1400 portable sensor (Li-Cor, Co., Inc., Lincoln, NE, USA). The first NI treatment (2009) began immediately after transplanting and lasted for 16 weeks (Feb. to May 2009) and the second NI treatment (2010) began 38 weeks after transplanting and lasted for another 16 weeks (Nov. 2009 to Feb. 2010). The average day/night temperatures during the NI treatment were 22/15°C and 19/12°C for the first and the second year, respectively. Temperature was measured with a data logger (NJ2005, Nongjung, Seoul, Korea). Environmental conditions such as air temperature, relative humidity (RH), and CO₂ con-centration were kept similar in all sections of the green-house during the experimental period.

Summer Cooling Treatment

Cooling treatments were applied twice during the 2 years of experimental period. The plants were subjected to the summer cooling treatments from June to August for 9 weeks in 2009 and 2010. The 80 m long greenhouse was divided into two identical sections. One of the sections was cooled by a shade screen (shade), while the other was cooled using a mist system (mist). The shade screen was polyester with nominal values of 50% shade. The greenhouse was ventilated by openings in the roof and the sides. The greenhouse was equipped with a single continuous roof vent (79.5 m long × 4 m wide) located on the north side of the roof along with two side vents. All vents were completely open all the time during the summer experimental period.

The mist cooling equipment consisted of a high-pressure water vapour distribution system comprising three mist and fan modules, each with a capacity to cover 100 m². Vertical air mixing fans were used to facilitate homogeneous water vapour distribution inside the greenhouse. A circular ring with eight nozzles for the distribution of mist droplets was placed above the fan outlet. Each module had a total capacity of approximately 160 L･h^-1 at a working pressure of approximately 40 bars. Based on the previous experimental data showing that greenhouse air temperature levels were below the upper limit of optimal temperature (25 ± 1°C) necessary for the crop before 10:00 h and after 16:00 h, the mist system and shade screen were scheduled to operate continuously from 10:00 to 16:00 h.

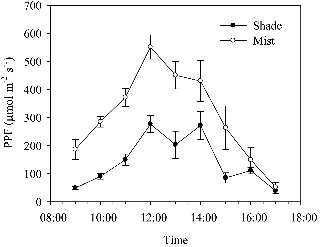

Dry and wet temperature sensors placed close to the plant canopy in each greenhouse section were used to monitor the air temperatures and RH. A Nongjungcyber greenhouse computer with a data logger (NJ2005, Nongjung, Seoul, Korea) for temperature and another data logger (M100, Hanyoung, Seoul, Korea) for RH were connected for the recording and storage of climatic data every 30 min. The photosynthetic photon flux (PPF) was measured every 30 min using an Li-Cor 1400 portable sensor (Li-Cor, Co., Inc., Lincoln, NE, USA) from 09:00 to 17:00 h.

Data Collection

Climatic data collected in summer were averaged over 30 min intervals, covering the period from 05:00 to 21:00 h. Due to the similar responses to temperature, RH, and PPF in most days, only selected data collected during representative sunny days were presented. The data selected for analysis were recorded on July 5, July 23, and August 13 in 2009 and June 23, July 13, and August 19 in 2010.

The number of leaves, leaf length, leaf width, the number of pseudobulbs, and pseudobulb diameter were measured monthly. The longest leaf measured from the base of the pseudobulb was used to represent leaf length. Pseudobulb diameter was measured at the widest point of the flowering pseudobulb using a digital caliper (ABS Digimatic Caliper; Mitutoyo Co., Ltd., Tsukuba, Japan). The time from the start of the treatments to flowering pseudobulb emergence and flowering percentage after the NI and cooling treatments were recorded. The time to visible inflorescence (VI) from the start of the treatments and the number of flowers were also measured. The time at which the first floret was fully open was considered the flowering time. However, all the ‘Yokihi’ plants grown under HNI in combination with the shade cooling system died as a result of soft rot disease in August, 2010. Therefore no more data were collected for this treatment (Table 2).

Statistical Analysis

Statistical analyses were performed using SAS for Windows v8 (SAS Institute Inc., Cary, NC, USA). Differences in growth and flowering among the treatments were assessed using a Tukey’s honestly significant difference test at p < 0.05. Regression and graph module analyses were performed using the Sigma Plot (Systat Software, Inc., Chicago, IL, USA).

Results

Greenhouse Microclimate in Summer

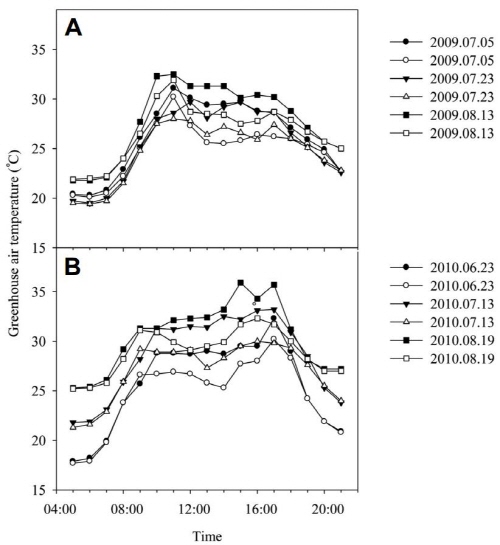

The average day temperature between 10:00 and 16:00 h in the mist-cooled section was 2.3°C and 2.7°C lower than the average day temperature in the shade section in 2009 and 2010, respectively (Fig. 1). The night temperature was not controlled, yet naturally remained at 20 ± 2°C in summer and 10 ± 2°C in winter. In the mist-cooled section in 2010, the air temperature reached about 28°C after 11:00 h, remained at this level until 14:00 h and then started to decrease (Fig. 1B). In the shade in 2010, it reached a mean maximum value of 35.9°C at 15:00 h. The average leaf temperature between 10:00 and 16:00 h in 2010 was 29.2°C in the mist and 31.8°C in the shade (data not shown). An analysis of variance revealed significant differences between the microclimate in the different cooling treatments. RH was higher under mist conditions (80 ± 5%) than under shade conditions (55 ± 5%) in both years (Fig. 2). The average PPF values during the summer period from July to August were 305 and 142 µmol･m^-2･s^-1 in mist and shade, respectively (Fig. 3). Hence, the average daily light integral (DLI) in 2010 in summer (July to August) was 8.8 and 4.1 mol･m^-2･d^-1 at plant height in mist and shade, respectively.

Plant Growth

The number of pseudobulbs significantly (p < 0.01) increased under HNI condition in the second year NI treatment compared to plants grown under control condition regardless of the type of cooling treatments (Table 1). After the first year treatments, the pseudobulbs were bigger on plants grown under HNI and mist conditions than under control and mist conditions. After the second year treatment, the pseudobulbs were significantly (p < 0.05) larger in plants grown under HNI and mist conditions compared to plants grown under HNI and shade conditions. No significant differences were found in the number of leaves, leaf length, and leaf width in ‘Red Fire’ plants regardless of the type of cooling with NI treatments (Table 1). For ‘Yokihi’, the pseudobulb diameter was the largest (5.89 cm) in the HNI combined with mist (Table 2). Leaf length and width significantly (p < 0.001) increased under HNI combined with mist at the end of 2009 compared to those grown under control and LNI conditions. Leaves were longer in shaded plants compared to misted plants under the LNI condition after the first year (Table 2). No significant difference was found in the number of pseudobulbs in both years. No data were collected under the HNI combined with shading conditions in 2010 (Table 2).

Flowering

The time from initial planting to the time of flowering pseudobulb emergence decreased with mist cooling system by more than 12 weeks and 17 weeks than shade under LNI and HNI conditions, respectively, for ‘Red Fire’ (Table 3). The 60% of the plants of both cultivars flowered under LNI condition in the mist, and up to 100% of the plants for ‘Yokihi’ flowered under HNI condition. However, no ‘Red Fire’ plants flowered in the shade and only 20% of shade-cooled ‘Yokihi’ plants flowered under LNI (Table 3). Plants grown under LNI and HNI and mist conditions produced flowers. Time to VI decreased in the plants grown under HNI condition than under LNI condition in ‘Red Fire’ plants, whereas no significant differences was found in time to flowering in both cultivars. Both cultivars of Cymbidium grown at daytime temperature of 27°C or higher under shade condition has showed leaf necrosis and inflorescence abortion. In addition, mature ‘Yokihi’ plants grown under HNI died due to soft rot in early August of 2010 (Table 3).

Discussion

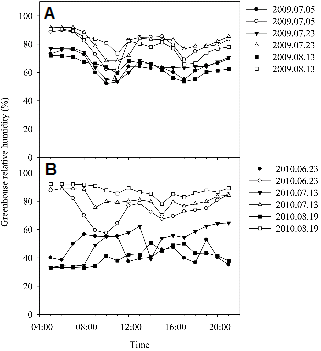

The average day temperature in the mist-cooled section was 2.5°C lower than the day temperature in the shade section, while the RH was 25% higher in the mist section than in the shade section, demonstrating that evaporative cooling systems not only decrease air temperature but also increase humidity in the greenhouse (Arbel et al., 1999). The air temperature and vapour pressure deficit significantly decreased under the use of a mist system for greenhouse cooling in cultivation of Rosa hybrida cv. First Red (Katsoulas et al., 2001) and Lycopersicon esculentum (Romero-Aranda et al., 2002). A further advantage of the mist-cooling is the establishment of uniform temperature and humidity conditions throughout the greenhouse (Perdigones et al., 2008). Withner (1974) reported that mist cooling is effective due to both the cool initial temperature of the water and its evaporative effects on the leaf surfaces in Cymbidium. In this study, the plants grown under shade condition did not flower with either the LNI or HNI conditions, while the plants under mist condition flowered within 2 years regardless of NI treatments. Cymbidium need to reach a certain growth stage which is represented by the minimum pseudobulb size before they turn into the reproductive stage (Kim et al., 2011, 2013). Increasing pseudobulb diameter is closely related to the photosynthesis which is influenced by temperature and light (Ng and Hew, 2000). The plants grown in the mist-cooling treatment had bigger pseudobulbs than those grown in the shade treatment under both NI treatments (Tables 1 and 2). Kim et al. (2011) reported that pseudobulbs with a minimum diameter of 5.2 cm for ‘Red Fire’ and 4.4 cm for ‘Yokihi’ were required for the flowering. However, our data indicate that the plants required at least 4.86 cm pseudobulbs diameter in ‘Red Fire’ and 4.2 cm in ‘Yokihi’ for flowering in this study. In Miltoniopsis, 90% of the pseudobulbs initiated inflorescences when the pseudobulb diameter was 3.1 cm or greater (Lopez and Runkle, 2006), and in Odontioda, a temperature maintained at 17°C yielded the greatest increase in pseudobulb diameter (Kubota et al., 2005).

Cymbidium ‘Yokihi’ plants grown under HNI died due to soft rot by high temperature during the second year treatment (Table 3). Similarly, Odontioda ‘Velano’ grown at 28/18°C (12 h day/12 h night) developed yellow leaves within 8 weeks and died within 24 weeks (Kubota et al., 2005). High temperature response has been also reported in the Zygopetalum ‘Fire Kiss’, in which the flower buds on plants grown at temperatures greater than 25°C developed necrotic lesions and aborted within 20 days (Lopez and Runkle, 2004). Although plants can tolerate high temperatures (> 27°C), such conditions favour soft rot infection (Wright and Triggs, 2009). Klement (1990) found that high temperatures (> 30°C) can deplete O₂ stored in plant tissues due to respiration.

Cymbidium ‘Red Fire’ and ‘Yokihi’ should be grown at temperatures of < 27°C in summer to prevent heat stress and inflorescence abortion. Although the parents of ‘Red Fire’ and ‘Yokihi’ have not been reported, these cultivars required relatively high temperatures for flower initiation. Inflorescence initiation in summer and flower development before winter also occurred in the Cymbidium ‘Shiratama- Nishiki’ (Kosugi et al., 1971). In general, flowering occurs only after the termination of vegetative growth in the pseudobulbs and is regulated by temperature in many orchid species (Chae, 2002; Ng and Hew, 2000). Miltoniopsis ‘Trinity’ had the highest flowering percentage (> 90%) when they were grown under a 9 h photoperiod at 20°C for 4-8 weeks and subsequently transferred to 14°C for 8 weeks (Lopez and Runkle, 2006). Ichihashi (1997) reported that flower initiation in mature pseudobulbs of Dendrobium occurred only when they were exposed to temperatures below 20°C. Epidendrum and Phalaenopsis required relatively or absolutely low temperatures for flower initiation (Chae, 2002).

Increasing DLI increases biomass accumulation, decreased time to flower, and improves final plant quality in some herbaceous plants. For example, increasing DLI increased flower number and size in Petunia × hybrida (Kaczperski et al., 1991) and Catharanthus roseus (Pietsch et al., 1995). Days to flowering of Cyclamen persicum (Oh et al., 2009) decreased from 133 to 75 as DLI increased from 1.4 to 17.3 mol･m^-2･s^-1. In the present study, shade condition decreased greenhouse PPF and DLI by approximately 48% compared to the mist condition during the daytime. The earlier flowering and flower induction under the mist condition could also be explained by the higher DLI.

Our data showed that NI promoted vegetative growth under both mist and shade treatments during the early growth stages, but no flowering occurred within 2 years when the plants were grown under NI and shade conditions. Temperature and DLI are factors for flowering of Cymbidium, but it cannot be determined if the promotion of flowering was from temperature, DLI or both in this study. Additional research in growth chambers with two light levels combined with two temperature range is needed to confirm whether the flower induction that occurred under the mist condition was because of cooler temperatures, higher DLI or both. However, the results of this study could be used to help commercial operations and improve efficiency of Cymbidium orchid production in a greenhouse. Under the NI condition in a greenhouse, mist system during the summer season could be a more effective cooling method for Cymbidium cultivation, than shade system or moving plants from low- to high-elevation areas.
